Eleaf iStick Pico RDTA 75W TC Kit 2300mAh

About Eleaf iStick Pico RDTA 75W TC Kit 2300mAh

Eleaf is one of the most recent e-ciggereate company offering quality products along with state of the art customer support. The company has regular customers who prefer its products. Some of the products that we offer include eleaf mini iJust battery, rebuildable atomizer, elaf iJust mod, iSmoka iGo Mod and several other products. You can visit our online shop and buy ismoka electronic cigerrate to get the best e-smoking experience.

The iStick family by Eleaf comprises of iStick Pico, iStick Basic, iStick OC, iStickPower and iStick Pico 25. All these devices are compact in size and comfortable to hold as well. Along with that, the buttons are easy to use. You can opt for leather and silicon cases. The iStick is a successful series with the well known VV/VW/TC MODs. You can make a selection according to your taste requirements. For the best vaping life, iStick is a superb alternative.

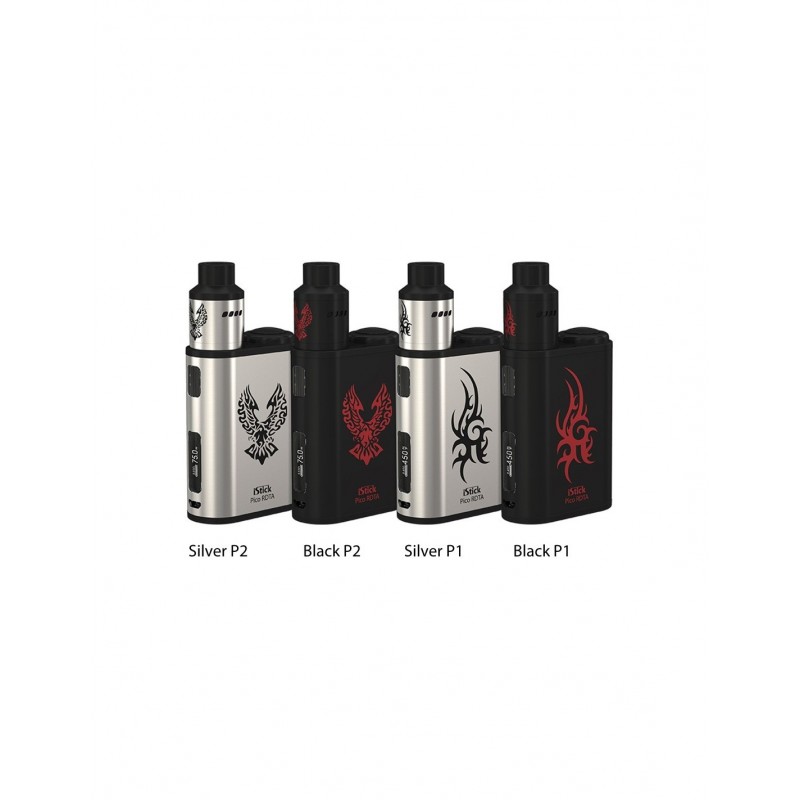

75W Eleaf iStick Pico RDTA TC Kit - 2300mAh

Product introduction

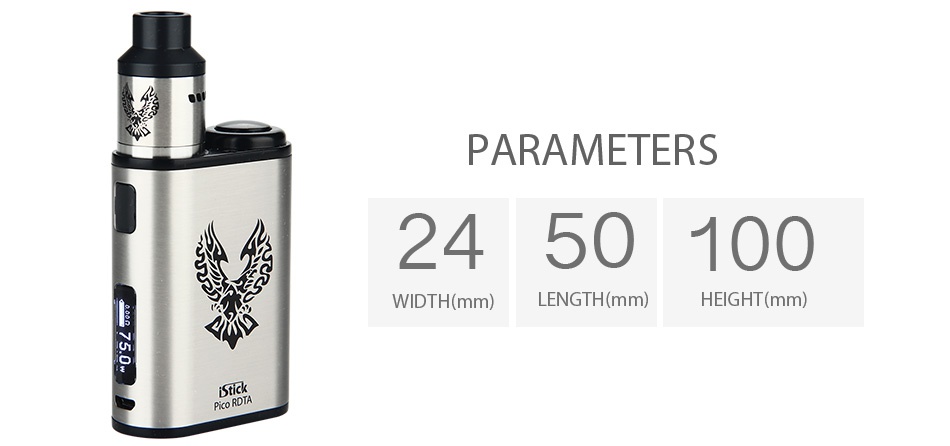

Parameters
Size: 50 x 24 x 100 mm
Output wattage: 1-75W
E-liquid capacity: 4.2ml
Battery capacity: 2300mAh
Battery cell type: 20600
Output mode: VW/Bypass/Smart/TC(Ni,Ti,SS,TCR-M1,M2,M3) mode
Resistance range: 0.05-1.5ohm (TC modes)
Airflow: side airflow
TEMP range: 100ï¼315℃/200ï¼600F (TC modes)

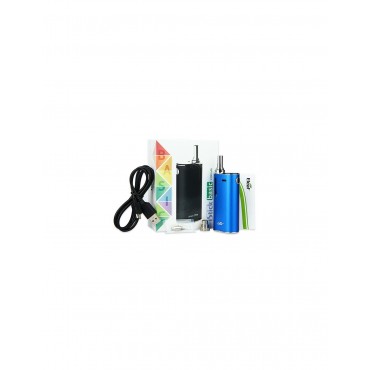

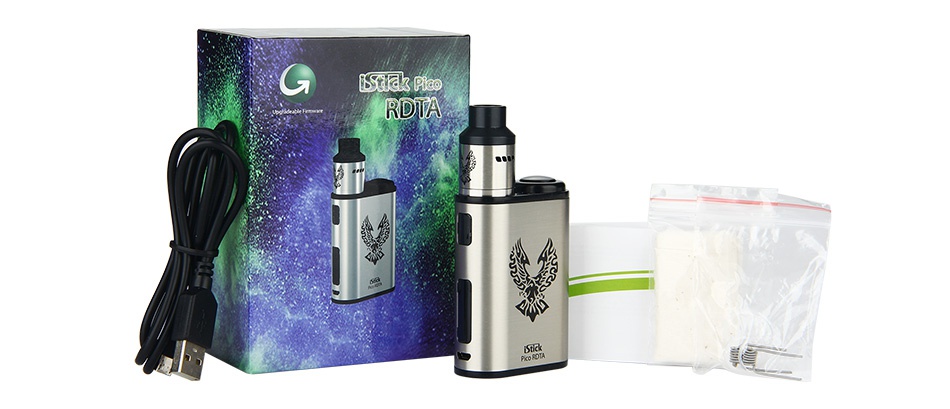

Eleaf iStick Pico RDTA 75W TC Kit 2300mAh contains

• 1x iStick Pico RDTA
• 2x Clapton coils
• 1x Pure cotton
• 1x USB Cable
• 1x User Manual
• Spare parts

Simple packing. Customary Packing from the factory, the packing is subject to change without notice.

• You can select the vape juice here.

Features

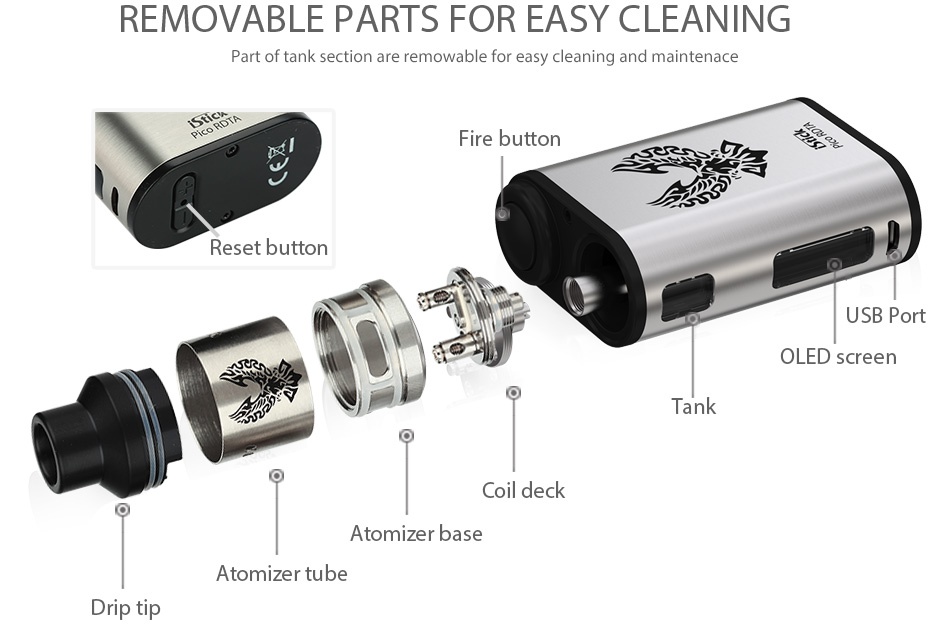

Removable parts for easy cleaning

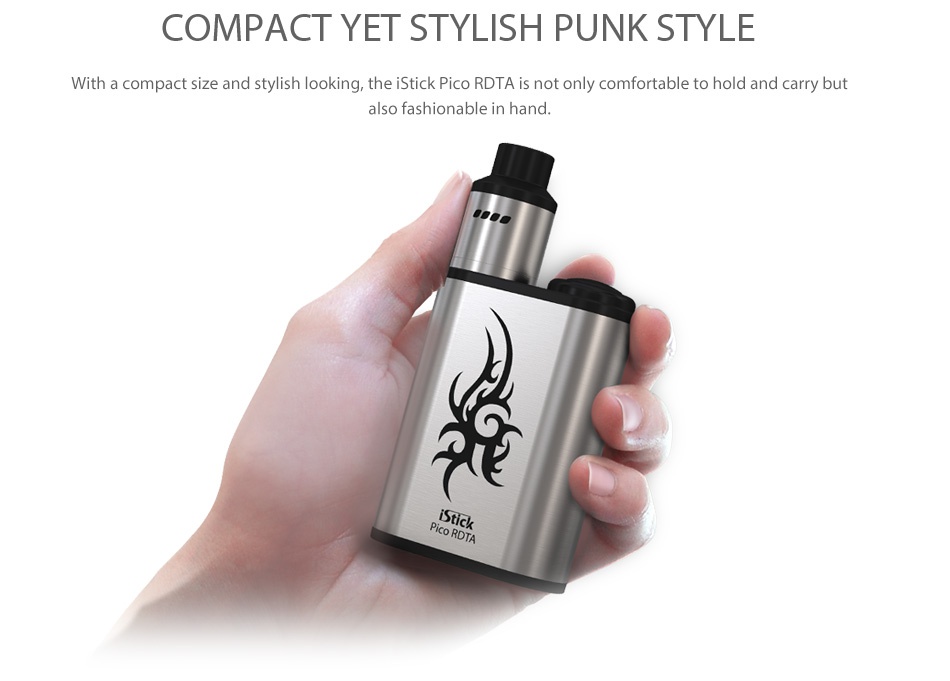

Compact yet stylish Punk style

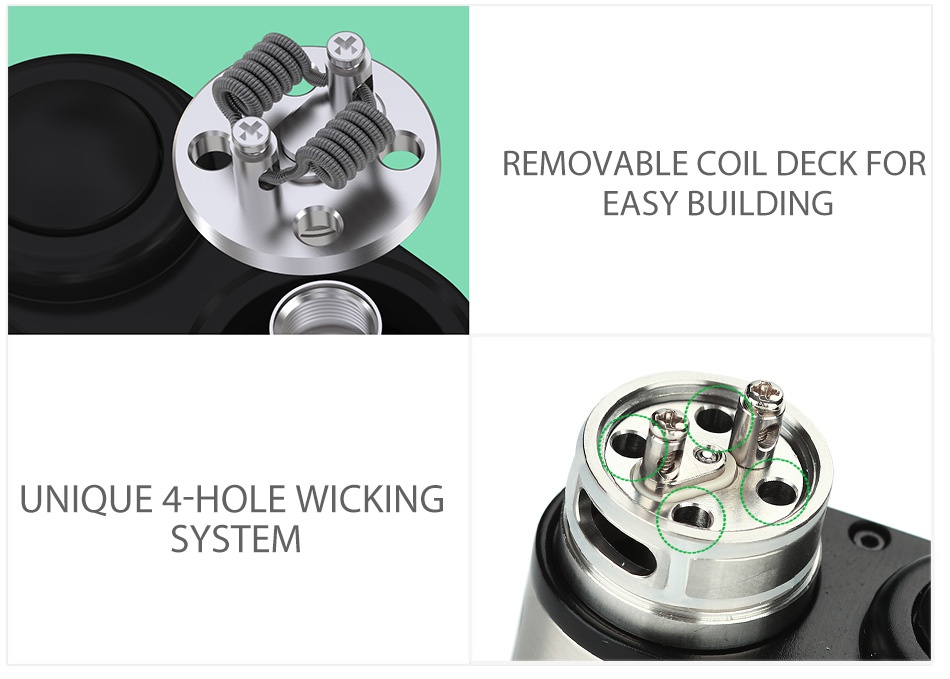

Removable coil deck for easy building
Unique 4-hole wicking system

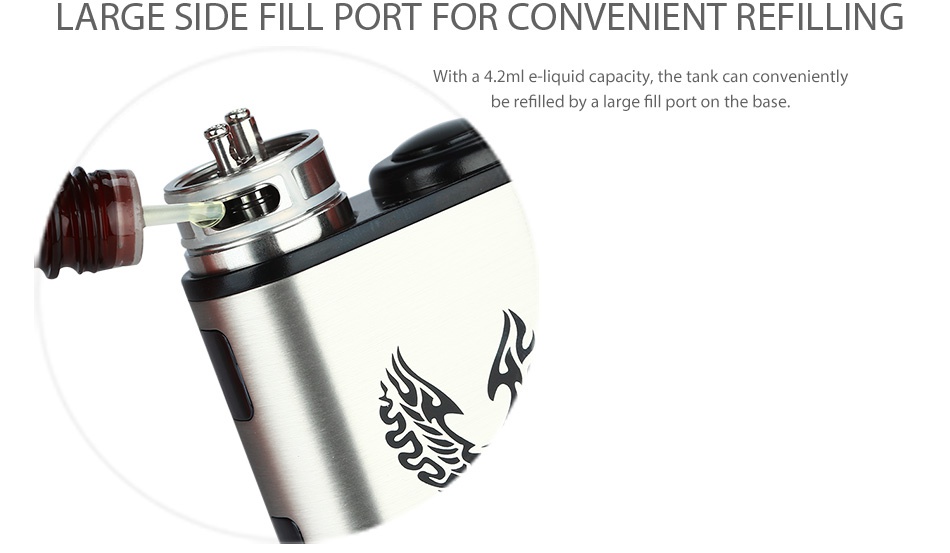

Large Side Fill Port for Convenient Refilling

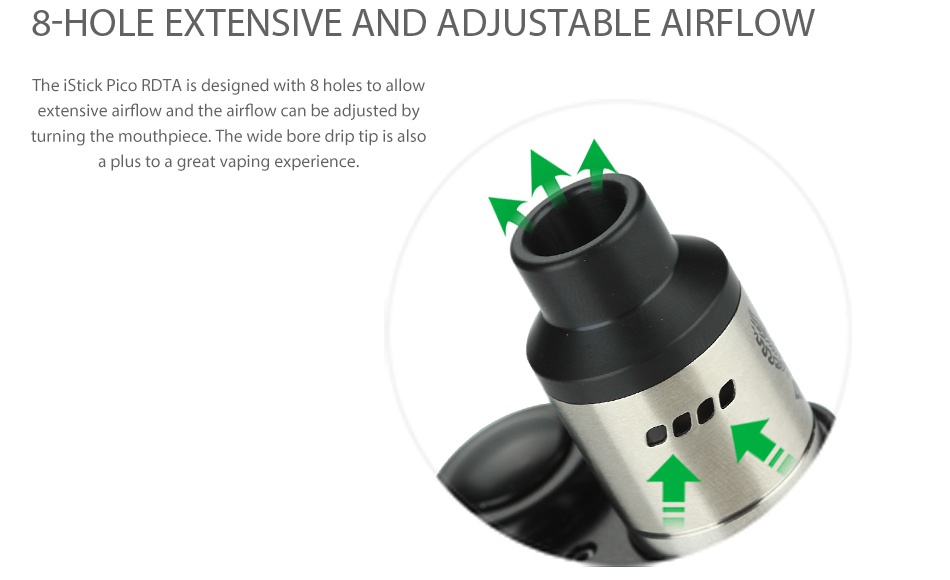

8-Hole Extensive and Adjustable Airflow

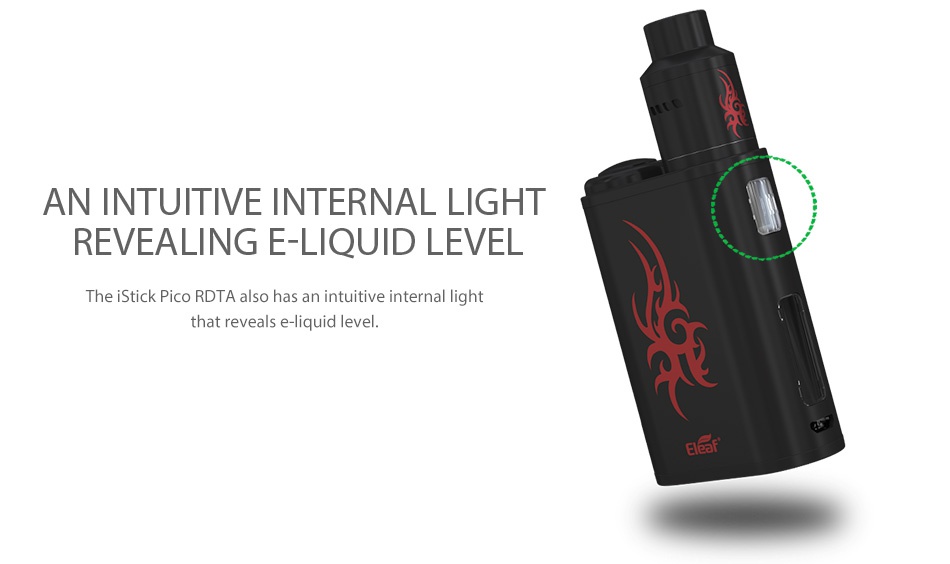

An Intuitive Internal Light Revealing E-liquid Level
Built-in 2300mAh Battery with 75W Output

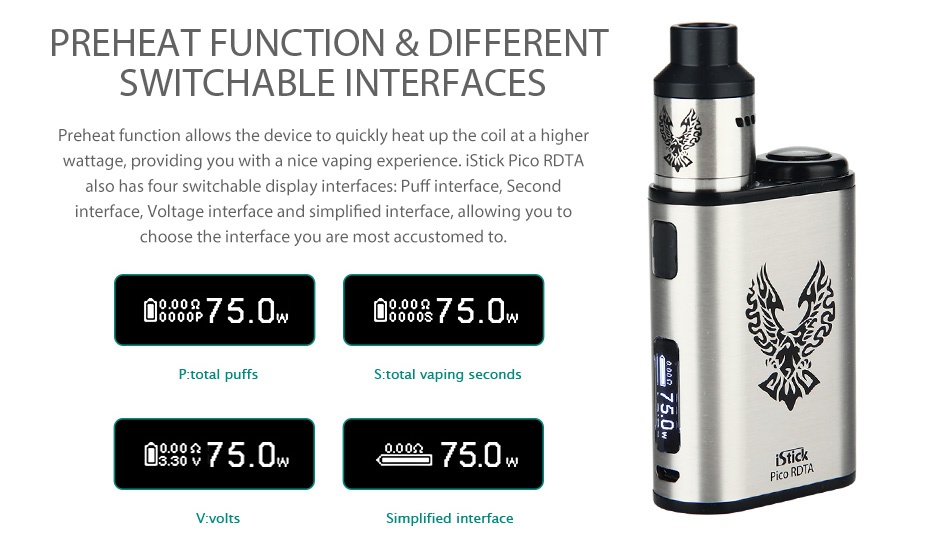

Preheat Function & Different switchable Interfaces
Big Top Fire Button
Dual Circuit Protection

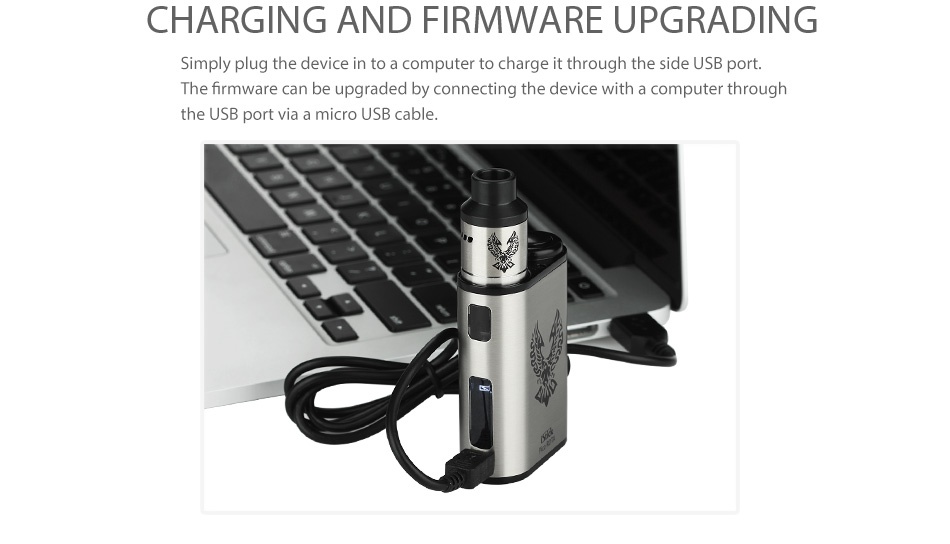

Firmware Upgrading
Reset Function

Operation Guide

Atomizer Assembling:

1. Unscrew the atomizer and remove it, and then unscrew the deck inside;
2. Lift the two screws on the posts of the deck, fix pre-made or self-built coils on the deck;
(please make sure the finally fixed coils do not come into contact with the surface of the deck and the inner wall of the atomizer tube; please first activate the device to heat the coils till they evenly glow red.)
3. After the coils cool down, pass one piece of cotton through each coil, stuff the four holes on the deck with the tail ends of each cotton and cut out spare cotton;
4. Screw the deck back, and drip a few drops of e-liquid directly into the coils and cotton to make the coils fully saturated before use;
5. Screw the atomizer back, remove the atomizer tube with mouthpiece to expose the fill port on the atomizer base, and then fill e-liquid into the tank through the port;
6. Finally put the atomizer tube with mouthpiece on, adjust the airflow by turning the mouthpiece, and the atomizer is ready for use.
7. After several puffs, please put the iStick Pico RDTA upside down to let e-liquid in the tank stream down to saturate the coils again or remove the atomizer tube to directly drip a few drops of e-liquid on the coils again to saturate them.

Power on/off: the device can be powered on/off by pressing the fire button 5 times.

Vaping: long press the fire button to take a puff when the device is powered on;

Stealth on/off: press the fire button and "-" button simultaneously when the device is powered on to switch between Stealth on and Stealth off mode.

Adjustment buttons lock/unlock: keep pressing "+" "-" button simultaneously for two seconds when the device is powered on, then the "+" "-" buttons will be locked and the screen will display LOCK. In the same way, the two buttons can be unlocked and the screen will display UNLOCK.

Switch display mode: keep pressing "+" "-" button simultaneously for two seconds when the device is powered off, the screen display will rotate 180 degrees. You can view the screen from two different angles through this operation.

Switch Vaping modes: when the device is powered on, press the fire button 3 times in quick succession, the device will display current vaping mode. press the "+" "-" button to switch among VW/Bypass/Smart/ TC-Ti/TC-Ni/TC-SS, TCR-M1/M2/M3 modes and then press the fire button once or stay in the interface for about 10 seconds to confirm the vaping mode you chose.

Guarantee

3 months for iStick Pico RDTA. Please check Guarantee Policy.

Note: We now need serial number to proceed after-sales service. Please kindly preserve the serial number of product if it's available.
