Aspire Platinum Kit 2000mAh

About Aspire Platinum Kit 2000mAh

Aspire is a rising sensation in the world of e-cigarettes and is well on its way to becoming a well-known vaping brand. Currently, aspire is focused on providing the high quality batteries and cartomizers. The most popular products of Aspire are Aspire CF battery series, and Nautilus Mini Series. Being a revolutionary in its field, Aspire is aiming to lead electronic cigarette to level higher than ever before.

The Atlantis series of Aspire is a stunning line of accessories like Atlantis, Atlantis EVO, Atlantis 2, Atlantis Mega, and others. The double wicking efficiency of the product when coupled with the lower positioned wick points result in ultra-effective juice flow which only adds to the great flavors of the vape. It has an innovative tank system that provides the users with an improved and adjusted airflow, a massive 5ml e-liquid capacity, and a lot more.

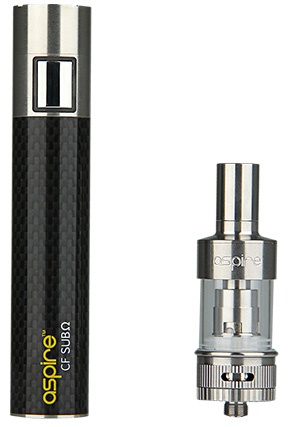

Aspire Platinum Kit with Atlantis Tank and 2000mAh Subohm Battery

Product Instructions

Atomizer:

Capacity: 2ml
Size: 22mm * 70.3mm
Tank: Pyres Glass
Base hardware: stainless steel
Available resistance: 0.5ohm (20-30W)
Aire hole size: 2mm, 2.8mm, ellipse 6*2.6mm, ellipse 9*2.6mm

Subohm battery

Length x Diameter: 114.5 X 22mm
Suitable voltage: 3.0V~4.2V
Capacity: 2000mAh
Output Voltage: 4.2V full power output
Compatible with 0.3-1.0 ohm atomizer
Maximum current: 40A

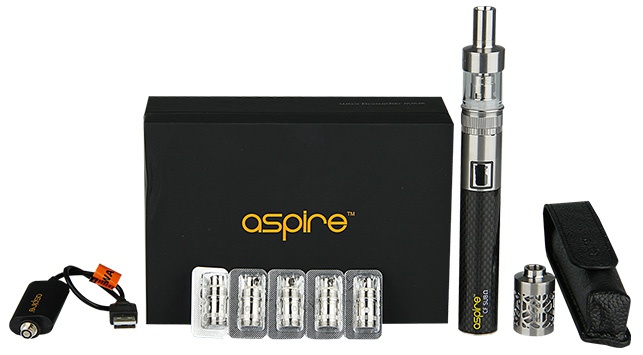

Aspire Platinum Kit comes with

• 1 x  Aspire CF SUBohm 2000mah
• 1 x  Atlantis 2ml
• 1 x  5pcs 0.5ohm atomizer coil
• 1 x  USB charger
• 1 x  Atlantis replacement tank with hollowed-out sleeve
• 1 x  Real leather scabbard
• 1 x  Start guide

Simple packing. Customary Packing from the factory, the packing is subject to change without notice.

Detailed Instructions

Features

1. Sub ohm 0.5ohm coil
2. Patented Aspire BVC technology

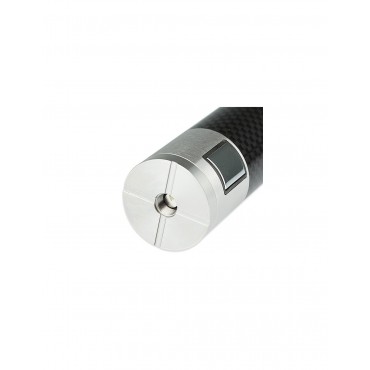

3. Battery with spring connector
4. Carbon fiber coated tube
5. Stainless steel metal button
6. Safety holes
7. Low battery indication
8. Full battery protection function
9. High Quality Cell and Control Circuit
10.Perfect inner structure design

Operation Guide

How to fill atomizer
1. Turn upside down the cartomizer, and then screw off the bottom hardware.
2. Use the syringer or dropper to fill less than 2ml e-liquid into the space between the glass tank and the center metal tube. Do not overfill it.
3. Carefully screw on the bottom hardware, connect it with the battery and enjoy it.

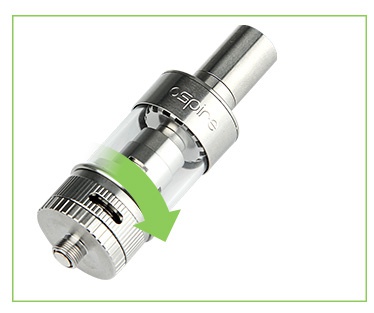

How to control the Airflow
4 different airflow hole sizes: 2mm, 2.8mm, ellipse 6*2.6mm, ellipse 9*2.6mm . You can rotate the airflow control valve to choose the most comfortable one.

Turn ON/OFF: Press button 5 times in succession in 2 seconds. The LED will blink 3 times (both blue and orange lights) and the button will illuminate Blue when active and ON. Repeat this procedure to turn battery OFF.

Usage: Press the LED button and inhale at the same time.

LED Light Indicator: Blue LED light will display for battery cell voltage of 3.5-4.2V. The Orange LED indicates a voltage less than 3.5V.

Charging Instructions:
-Unscrew the battery from the vaping components.
-Gently screw battery into the USB charger.
-Plug the USB into the supplied wall charger or computer.
-The battery will flash 3 times and then turn solid in color (Orange light in 3.2-3.5V, Blue light in 3.5-4.15V).
-The light on the USB charger will be red when charging.
-Once fully charged, the USB charger will display a green light, and the LED light on battery will turn off.

Battery Protection Function
-Overcharge Protection: When battery is overcharged (voltage beyond 4.25V), the built-in microchip will automatically stop battery charging.
-Overdischarge Protection: When battery cell voltage is less than 3.2V (low battery), the atomizer will remain OFF, and the Orange LED light will blink 15 times.
-Atomizer Short Circuit Protection: If heating coils are short-circuited while vaping, the LED lights (both colors) blink 3 times, and the battery will default to  “sleep mode.â€
-Charging Short Circuit Protection: If the charger is short-circuited while charging, the battery will default to OFF position, stop charging, and the LED lights (both colors) will flash 6 times.
-Lock and Unlock Function: To lock the battery, press the button 5 times in succession in 2 seconds. The LED lights (both colors) will flash 3 times. Repeat this procedure or recharge to unlock.

Order Tips

• Aspire Platinum Kit 2000mAh contains 510/eGo thread.
• There is CE mark on the battery.
• You shall buy e-juice separately.
• You can use Atlantis coil or Triton coil with it. (Atlantis is not compatible with Triton Mini coil. )Â



Guarantee

Please check Guarantee Policy.

Guarantee period: 6 months for batteries, no warranty for the rest spare parts.
