SMY 75W TC Mini Starter Kit

About SMY 75W TC Mini Starter Kit

SMY is a company that strives to create only the highest quality vapes. They focus primarily on creating box mods that are trustworthy and reliable, each one designed to be as powerful as possible. They offer variable wattage vapes that range between 180 and 260 maximum wattages, as well as temperature control devices that give you even more customization power than ever. In this section, we offer the best of the best SMY vapes for you to choose from, all at a low price.

Product Instructions

Parameters

75W Mini box MOD

Size: 81 x 41 x 23(mm)

Variable Wattage: 1W – 75W

Resistance Range: 0.1ohm – 3.0ohm (VW: 0.1ohm -- 3.0ohm; TC Ti: 0.1ohm -- 1ohm; TC Ni200: 0.1ohm -- 0.5ohm)

Temp Range: TF 200 - 600F, TC 100-315℃

Thread: 510 spring loaded

Fit for 1*18650 Battery( NOT included)

With USB Charging Port

Star Atomizer

Size: 22mm(D) x 45.5mm(L)

Support wattage: 10W - 60W

Material: stainless steel, pyrex glass

Capacity: 2ml

Thread: 510

SMY 75W TC Mini Starter Kit contains

• 1 x SMY 75 TC Mini Body
• 1 x Star tank(0.3ohm SS coil pre-installed)
• 1 x extra Ni200 coil 0.15ohm
• 1 x USB Cable
• 1 x Certification
• 1 x User Manual

Simple packing. Customary packing from the factory, the packing is subject to change without notice.

Features

1. Max output 75W

2. Temperature control

3. U shaped magnetic battery access

4. Spring loaded 510 pin

5. Short circuit/low battery/low power/10S/temperature protection

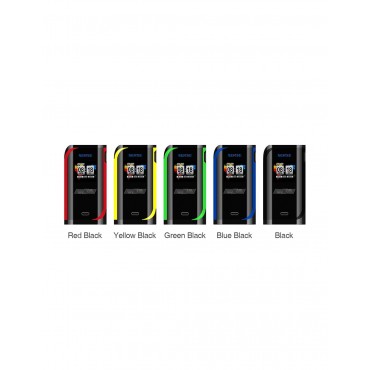

6. Variable colors

7. Ergonomic Design

8. 2ml e-juice capacity

9. Top filling

10. Dual adjustable slotted airflow

Operation Guide

How to Use

1. Open the cover and install 1 x 18650 in the tube following "+", "-", then lock the magnetic cover.

2. Screw the atomizer on the 510 thread in the clockwise direction;

3. After inserting the battery, click the fire button 3 times within 2 seconds to power on the device;

4. Click the fire button 3 times quickly within 2 seconds to enter the main menu mode to set up the operation parameters;

6. Exit the main menu, display the standby screen and then adjust "+"/ "-" to get the power you want, press the power button, then vaping.

7. After entering the main menu, press power button to confirm your setting and exit to Home screen directly. Switch the working mode to TC or TF mode under main menu.

8. Turn off the mod under main menu.

• No 18650 batteries included. You shall purchase separately.

• 510 threaded.
