KOOPOR Plus 200W TC MOD

About KOOPOR Plus 200W TC MOD

With the KOOPOR TC MODs, you can dive right into the world of temperature control vaping without a hitch. In this category, there are plenty of KOOPOR TC MODs to choose from, including simple 60-watt devices to devices that run as high as 200 watts and 300 watts alike. All of the items here will get you started on your temperature control journey, each one designed to be easy to use and totally safe for the beginning temperature control vaper.

200W KOOPOR Plus TC/VW 18650 MOD

Parameters:

Size:Â 100.0mm x 59.0mm x 24.5mm

Material:Â Stainless Steel and Zinc Alloy

Output Wattage: 6W - 200W

Output Voltage: 0.35V - 8.00W

Resistance Range:

0.08ohm - 3.00ohm (Temp Mode)
0.10ohm - 3.00ohm (Watt Mode)

Standby Current: < 300µA

Maximum Current: it should be less than 50A when the atomizer resistance is 0.1ohm.

Thread: Spring-loaded center pin

Support: TC-Ni/TC-Ti/TC-SS

KOOPOR Plus 200W TC MOD contains

• 1 x Koopor Plus MOD
• 1 x Silicone Case
• 1 x User Manual
• 1 x Warranty Card
• 1 x Gift Box

Simple packing. Customary packing from the factory, the packing is subject to change without notice.

Detailed Instructions

Features

1. Temperature Control: 200°F - 600°F

• Under TC mode, KOOPOR Plus can recognize your coils (Ni200, Ti or SS)
• Be careful:Â attach atomizers to MOD when it's cooled to room temperature.
• When atomizer newly attached, KOOPOR Plus will prompt “NEW COIL UP SAME DOWN†for confirmation.

2. Dual Driver System

KOOPOR Plus has integrated Dual Driver System that works to buck and boost the voltage to improve the accuracy and speed of regulating, which enhances the consistency and taste of every puff.

3. 200W Super Power

It provides variable wattage from 6W to 200W, giving you more freedom to control your vapor!

4. Dual 18650 Batteries for All Day Vaping

KOOPOR Plus takes dual 18650 batteries that allow most vapors to enjoy vaping all day!

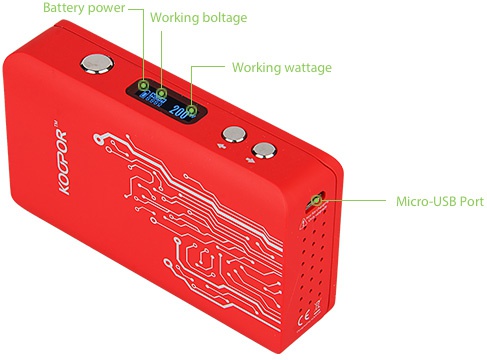

5. Large OLED Display

It presents all key information, including output wattage, output voltage, atomizer resistance and remaining battery life, etc.

6. Easy Slide Magnetic Battery Cover

Insteading of using screwdriver to replace battery, KOOPOR Plus takes magnet-held battery cover.You can simply slide it off and replace battery without tools.

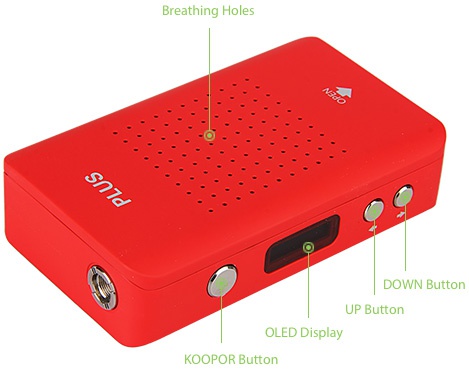

7. Great Heat Dissipation

The bottom of the box is full of small air holes, which are not only for decoration, but also for venting gases to prevent the box from overheating, therefore extending the operation life.

8. High-Frequency Dynamic Monitoring Resistance Technology

HFDMR, is a high-frequency resistance sensing technology, which can detect atomizer resistance once every 250 microseconds. With a precision of approximately 4000 times per second, it can regulate the temperature of heating coil more effectively.

9. Reliable Protection:

• Intelligent Atomizer Recognition
• Puff Monitoring System
• Over-heating Protection
• Short-circuit Protection
• Low Battery Warning

Operation Guide

How To Use

1. Battery Assembly: slide off the battery cover, put in two 18650 batteries, then slide back on the battery cover.

2. Power On/Off:Â Fast click the power button 5 times in 2 seconds to power on/off.

3. Connect the atomizer to the MOD and tighten it clockwise. After the MOD is powered on, please press the button to vape.

Order Tips

• 510 threaded
• No 18650 batteries included. You shall purchase separately.

Guarantee

6Â months
Please check guarantee policy.
