KIMSUN TC40W Mini Kit 1100mAh

About KIMSUN TC40W Mini Kit 1100mAh

KIMSUN is a brand created by KIMREE and it delivers some amazing products in the e-cig industry.

With the little size, top LED show and customizable wind stream, KIMSUN TC40W small brings an agreeable and exceptional vapor experience to you. That on its own can give you the value and experience you want without that much of a problem.

KIMSUN TC40W Mini Kit - 1100mAh

Product introduction

Parameters:

E-Liquid Volume: 1.1ml
Coil Material: Titanium
Coil Resistance: 0.32ohm
Size: 34.6(L)×21.2(W)×99.3(H)mm
Output Wattage Range: 5.0-40W
Temperature Adjust Range: 300-600°F/150-315℃
Battery Capacity: 1100mAh
Battery applicable to 0.15-2ohm atomizer
Charging Time: ≤2.0H

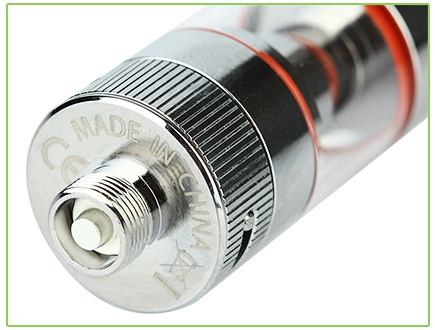

Applicable to Standard 510 Screw Thread

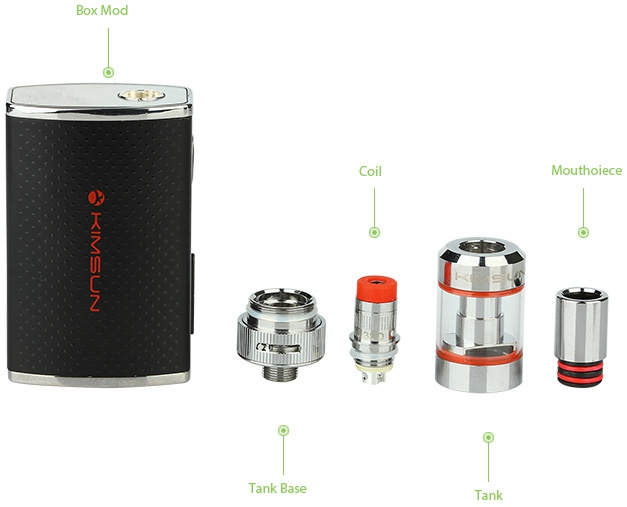

KIMSUN TC40W Mini comes with

• 1 x STL Tank II (pre-installed 0.32ohm Ti coil)
• 1 x TC40W Mini
• 1 x Ti 0.32ohm Coil
• 1 x USB cable
• 1 x Caution card
• 1 x User Manual

Simple packing. Customary Packing from the factory, the packing is subject to change without notice.

Detailed Instructions

Features:

Mini Size with Big Power (TC40W)
Top LED Display Screen
Temp Control and Power Control Modes
Adjustable Airflow valve
Quadruple Safe Protection
*Short Circuit Protection
*Low Voltage Protection
*Overcharging Protection
*Overtime Protection

Operation Guide

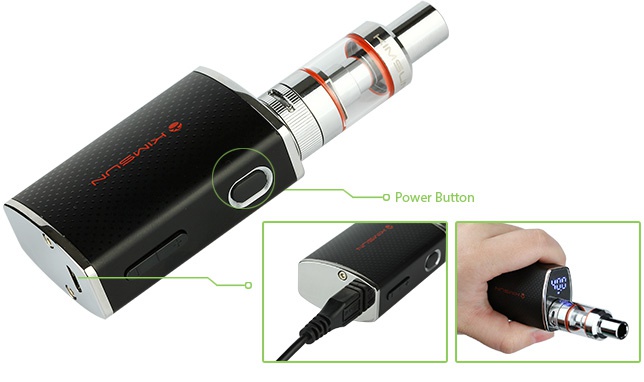

Lock/ Unlock: Press the power button 5 times in 2 seconds to lock, and repeat it to unlock.
Control mode switching: Press the power button three times fast in two seconds to switch between temperature control (F) and (℃) and Power control mode optionally.
Adjust power/temperature: The power / temperature will increase or decrease 0.1W / 1°F by pressing the + or - button by one time. Press and hold the + or - button will adjust the temperature fast.
How to charge: Connected with 5V 1A adapter or computer by USB cable to be charged.

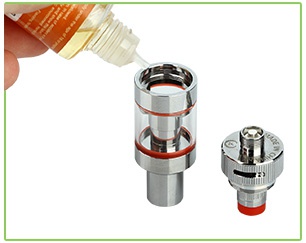

Filling e-Liquid: Unscrew the atomizer from TC40W Mini MOD, then remove the base from the tank under upside down status; fill e-juice into the tank through two holes against the outer wall. Screw on the base and attach it to the MOD. Please stand the tank upright 5 minutes before vaping.

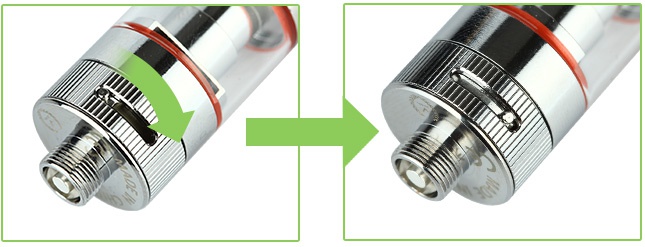

Adjust Airflow: Rotate the AFC ring clockwise to decrease the airflow and rotate it anti-clockwise to increase the airflow.

Order Tips

• KIMSUN TC40W Mini Kit 1100mAh contains 510 thread, can work with 510 thread TC MODs.
• It doesn't come with e-liquids. You shall buy separately.


Guarantee

3 months for battery MOD. Please check Guarantee Policy.
