Heatvape Kayfun Mini V2.1 RBA Atomizer 3ml

$111.11

  • Product Code: M00003371
  • Availability: In Stock
  • Ex Tax: $111.11

About Heatvape Kayfun Mini V2.1 RBA Atomizer 3ml

Determined to add something fresh and new to the vape industry, Heatvape has emerged. This brand creates a large variety of products, each one designed with the same premium materials and with the highest quality production standards to ensure that every product created is something that will be well loved. Heatvape creates mods, RBAs and more to satisfy the needs of every vape enthusiast. Find all of your favorite Heatvape products right here at a price you'll be pleased with.

Heatvape Kayfun Mini V2.1 RBA Rebuildable Atomizer Kit - 3ml



Parameters

Size (length x diameter): 85mmx14mm

Capacity: 3ml(with the short chamber)/6ml(with the long chamber)

Coil: dual coil or single coil (you should build the coil)

Material: stainless steel

Material of the transparent body: Polycarbonate

Thread: 510 thread

2 colors available: Black and Copper

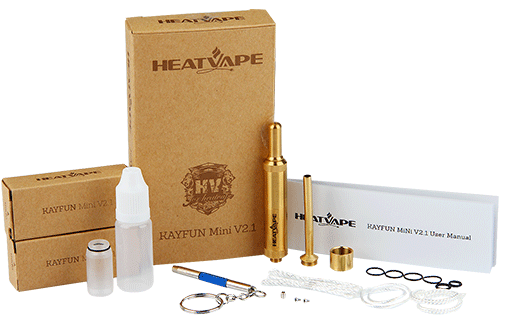

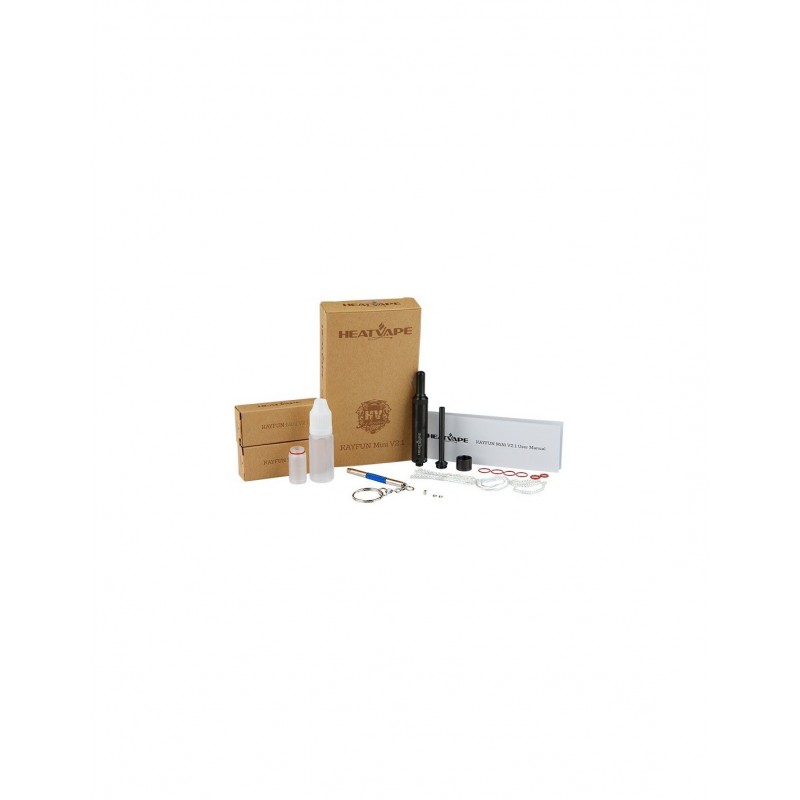

Heatvape Kayfun Mini V2.1 RBA Atomizer 3ml contains

  • 1x Kayfun Mini V2.1 Rebuildable Atomizer
  • 1x plastic tube
  • 1x screwdriver
  • 1x decorative ring
  • 1x 10ml empty plastic dropper bottle
  • 1x long cap of the evaporation chamber
  • 3x spare post screw
  • 6x spare O-ring
  • 7x heating wire /wick(5 pcs short and 2 pcs long)

Simple packing. Customary packing from the factory, the packing is subject to change without notice.


Detailed Instructions

Features

1. Dual coil or single coil

2. Constructed from soild stainless steel

3. Rebuildable Tank Atomizer

4. Integrated Drip tip and 510 Drip tip adaptor

5. Juice capacity: 3ml

6. Adjustable airflow

7. Overflow colletion cap

8. Rebuildable Tank Atomizer

9. Complete DIY materials


Operation Guide

1)How to assemble

First, Screw the collector-tank in atomizer base.

Second, install wick/coil.

Third, screw evaporation chamber into the atomizer base, then body, cover and mouthpiece in succession.

2)How to adjust the airflow

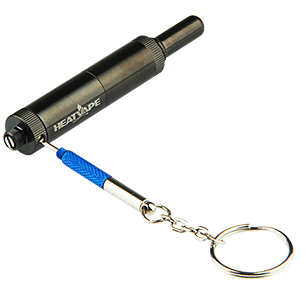

For the function of adjustable airflow, Kayfun-mini comes with a special screwdriver to assist the operation. Using the bottom part of the screwdriver to adjust the directions of screw in the atomizer head ring, you can easily realize different draws.

Note:Heatvape Kayfun Mini V2.1 RBA Atomizer 3ml contains a spare screw for the airflow valve. Pls keep them in position.


Heatvape Kayfun Mini V2.1 RBA Atomizer 3ml Operation Guide


3) How to fill in e-liquid

Kayfun-mini filling can be done in two ways.

Method 1 (classic):

-Unscrew the mouthpiece and the top cap

-Fill in e-liquid along with the inner wall of the atomizer tube (not through the central hole) Do not fill to the top

-Screw the cap and mouthpiece back


Method 2 (through the valve)

Filling through the valve, you will need a bottle with a thin plastic nose. Nose diameter should be suitable to the filling port.

- Turn the mouthpiece down

- Insert the nose of the bottle in the valve opening.

- Fill the tank by squeezing the bottle. The air will escape from the tank into evaporation chamber through the same grooves.

- Take out the nose of the bottle from the valve, turn mouthpiece on.

4) How to get 6ml capacity

-Replace the short chamber with the long one

-Assemble the plastic tube to the atomizer base and then connect with the steel tube

-Assemble the rest parts and you can get a 6ml capacity atomizer. Done!


Heatvape Kayfun Mini V2.1 RBA Atomizer 3ml Operation Guide


Order Tips


  • The atomizer comes with 510 thread. It's compatible with 510/eGo batteries.
  • Find comfortable nicotine level.
  • When you use Kayfun-mini for the first time, try to start from nicotine level twice less than you used to!
  • Find comfortable strength and duration of the draw.
  • When using Kayfun-mini, draw should be different from what you got used to with conventional cartomizers and tanks. It has to be smoother and lighter.
  • Find comfortable power level(voltage, resistance)
  • Power is the ratio of the square of the voltage to the resistance
  • If you have a 2ohm resistance coil, and the battery produces 3.7volt, then power is equal to 3.7/2=6.85watts.
  • Steel color also available
